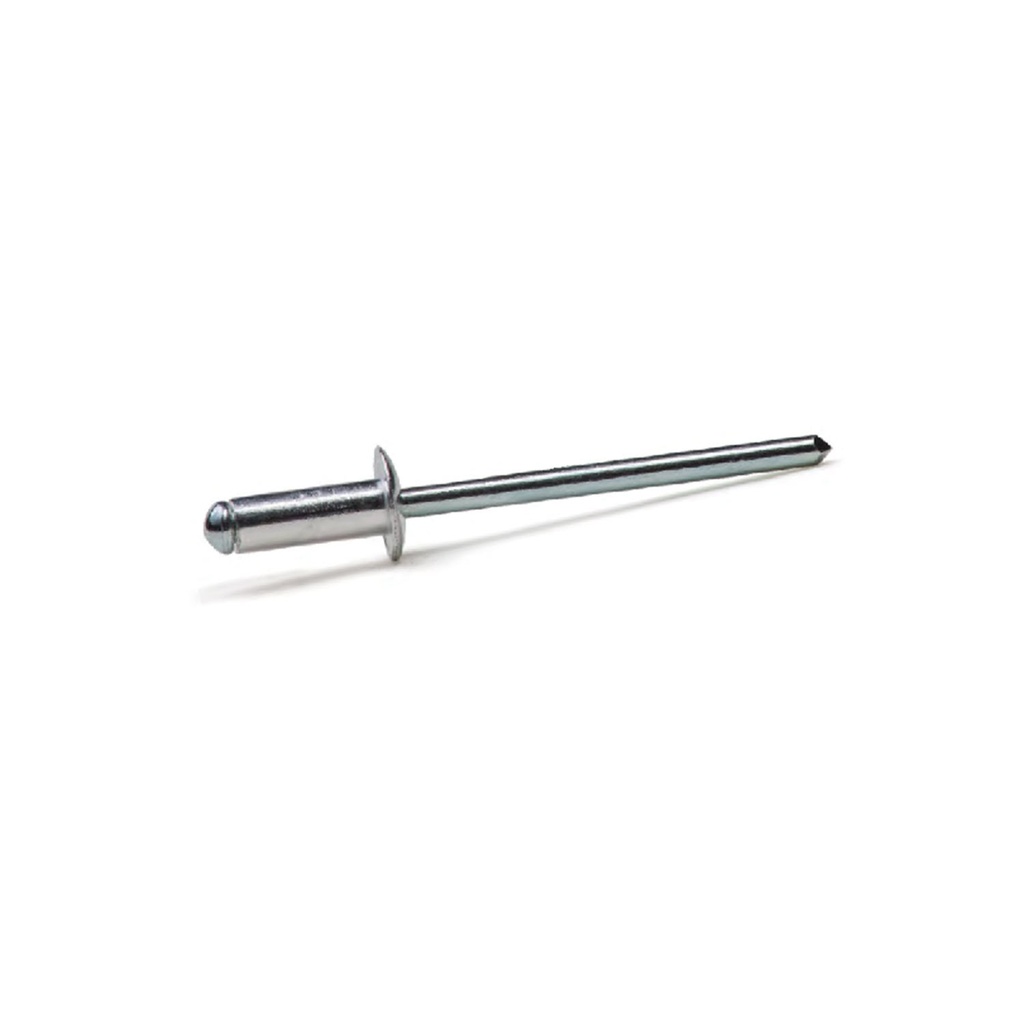

Certifix RS-AL-ST Dome headed standard aluminium/steel rivet 2.4 x 6

https://certifix.co.uk/web/image/product.template/9580/image_1920?unique=1a41fef

Price on Application

  • Body Diameter
  • Body Length
  • Body Material
  • Hole Diameter
  • Head Diameter
  • Head Thickness
  • Head Shape
  • Mandrel Diameter
  • Mandrel Material
  • Grip Range
  • Shear Strength
  • Tensile Strength

This combination does not exist.

Contact Us
Body Diameter: 2.4mm
Body Length: 6mm
Body Material: Aluminium AL MG 3,5
Hole Diameter: 2.5mm
Head Diameter: 5.0mm
Head Thickness: 0.6mm
Head Shape: Domed
Mandrel Diameter: 1.45mm
Mandrel Material: Zinc Plated 3μ
Grip Range: 2.0-4.0mm
Shear Strength: 350N
Tensile Strength: 550N
​

Unit of Measure Name: 1000
Internal Reference: RS-AL-ST-2.4*6
Technical Datasheet:

 NEED INFO / PRICING?
 0161 672 3333

Terms & Conditions

Product Description


Certifix Standard rivets are versatile blind rivets featuring a breaking mandrel. They offer a swift and effortless solution for joining various materials where exceptionally high torque isn't required.


Available in a wide diameter range of 2.4mm to 7.8mm, Certifix Standard rivets accommodate a broad spectrum of grip ranges, from 0.8mm to 185mm. The extensive material selection and diverse finishing options, including lacquering and protective coatings, provide unparalleled customization possibilities.

Features
  • Single-side access (blind rivet).
  • It covers a wide grip range; from 0.8 mm. to 185 mm.
  • Can be fixed from both ends.
  • Wide range of diameters: from 2.4 mm. to 7.8 mm.
  • Can fasten different materials with different types of manufacturing: composites, laminate materials, heat treated, etc.
  • Does not deform surfaces after the riveting process is finished (painted, glazed surfaces, etc.)
  • Good resistance to temperature variations.
  • Does not come loose from dynamic stress (vibrations in general)
  • Available in alloy magnesium contents of 3.5 and 5.0, which give a great tensile and shear strength, an excellent clamping force and a high resistance to corrosion.
  • Fast, simple and great quality assembly.
  • The riveting process is environmentally friendly, free of smoke, sparks, fumes.
  • It requires simple, fast and lightweight tools.


Applications


  • Vehicle structures
  • HVAC
  • Construction
  • Solar Energy
