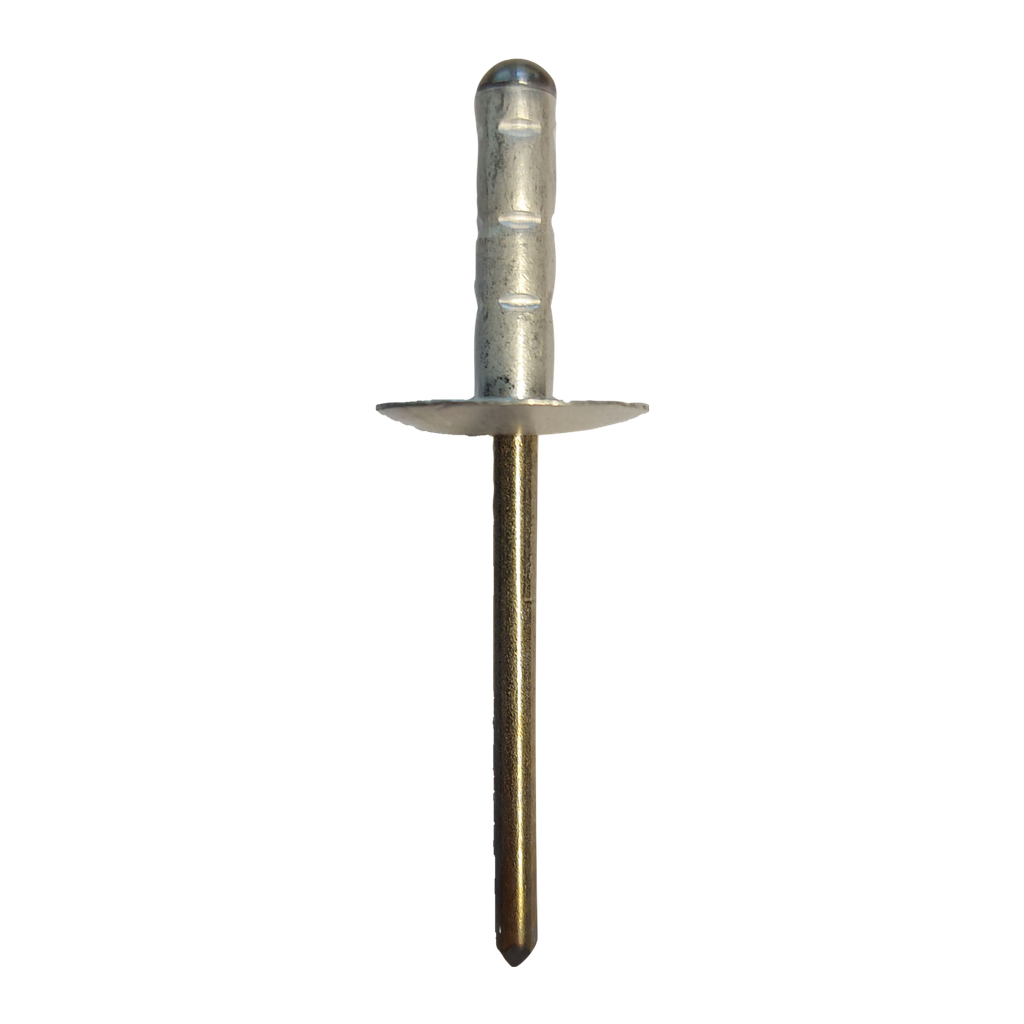

Rivet large dome head multi-grip large flange Alu/A2 4.8 x 17
| Head Diameter: 16mm |
| Body Diameter: 4.8mm |
| Body Length: 17mm |
| Grip Range: 5.0 - 13mm |
| Drill diameter: 4.9 - 5.0mm |
| Body Material: Aluminum AL MG 2,5 |
| Mandrel Material: A2 Stainless AISI 304 |
| Shear Strength: 1500N |
| Tensile Strength: 2400N |
Unit of Measure Name:
200
Internal Reference:
RMGLF-AL/2-4.8*17
Technical Datasheet:
Shipment:
Shipped from our warehouse
Product Description
Our specialty is coating rivets to match the panels they are fixed through. When using our industry leading paint match service, you can be confident the colour match will be spot on. Our team draws on over 30 years of experience in matching anything from metallic, plain, pastel, chromatic & pearlescent effects to blend in with your panel.
The rivets below are all stocked and can be turned around in 2 – 4 working days for regular quantities up to 10k.
Some colours are available on an economy service which saves cost but delivery time increases to 6 – 12 working days.
Features
- One size allows the fastening of multiple grip ranges due to the rivet design, reducing sizes needed across the project
- Full A4 stainless variant allows for a longer building design life, higher corrosion resistance and client confidence
- Full batch traceability from start to finish from manufacture to delivery
- Suitable for both fixed point holes and sliding point holes due to the large (16mm) flange size which covers both a 4.9mm or 9.5mm hole
- High tensile strength
- Our rivets are taken through an industry leading process to prepare and protect the coating which gives greater UV stability, reducing fade, and ensuring the coating sticks on the rivet and does not degrade
Applications
- Façade panel face fix to rail / channel
- Coping back to brackets
- Any fixing requirement inside the grip ranges, especially where a low profile is required, and colour matched where required
