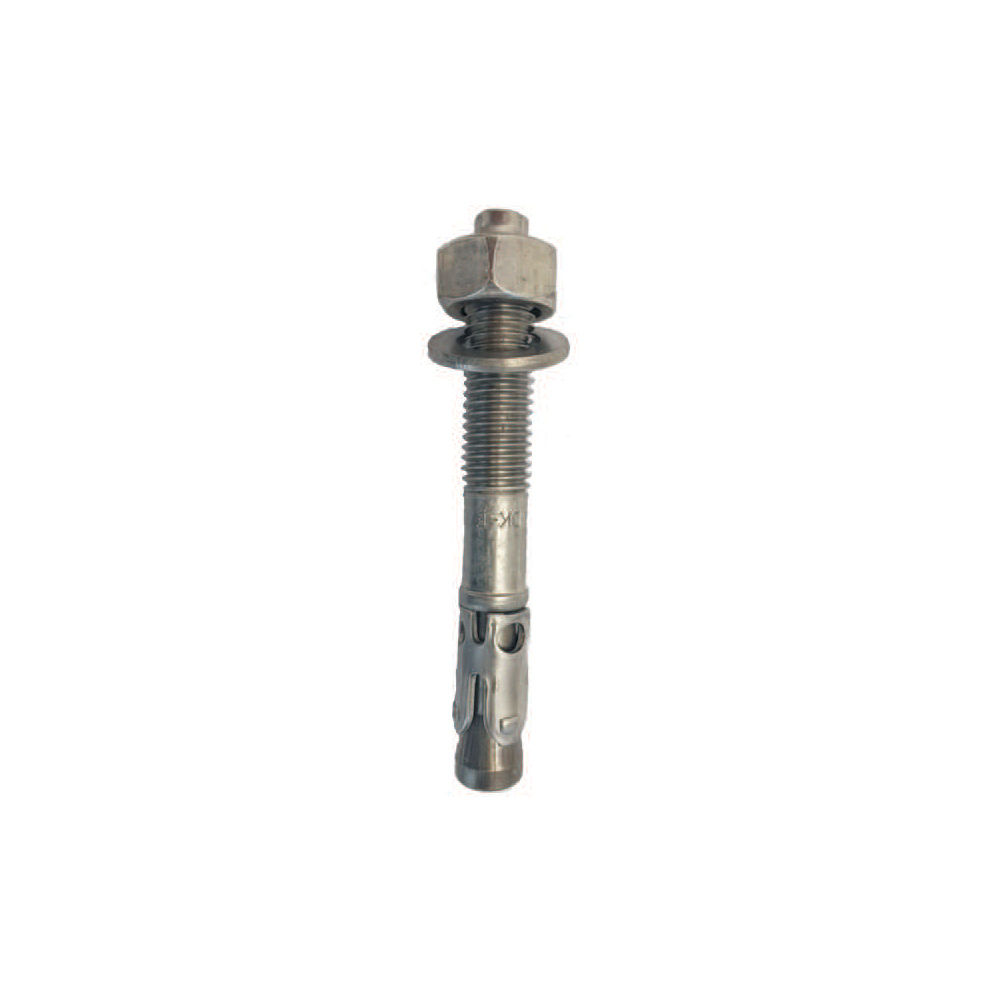

Certifix CFTB A4 8-20/85 A4 stainless steel through bolt
| Length: 85mm |
| Size: M8 |
| Drill diameter: 8mm |
| Thread: M8 x 40mm |
| Thread Length: 40mm |
| Material: A4 stainless steel |
| Drill Hole Depth: 65mm |
| Torque Moment: 15Nm |
| Clamping Range: 20mm |
Unit of Measure Name:
50
Internal Reference:
CFTB A4 8-20/85
Technical Datasheet:
Description
The Certifix CFTB through bolt offers a strong, ETA approved solution for anchoring medium and heavy fixtures in cracked or non-cracked concrete. This galvanized or hot-dip galvanized steel bolt installs quickly with minimal drilling thanks to its matching diameter drill hole requirement. Simply hammer the CFTB in, tighten the nut, and the expanding cone creates a secure hold in applications like brackets, cable trays, channels, and more.
.
Features
- Small drilling expenditure
- Quick assembly
- Perfect for through fixings
- Galvanized stainless steel available
- ETA Approved
Applications
- The through bolt can be used for medium and
heavy through fixings in cracked or non-cracked
concrete e.g: - Brackets
- Cable trays
- Channels
- Suspended ceilings
- Ducts
- Metal constructions
- Supports
- Handrails
- Shelf feet
Building Materials
- Cracked or non-cracked concrete
Certification
- ETAG 001 Option 1 (Cracked Concrete) M8 - M16
- ETAG 001 Option 1 (Non-cracked Concrete) M8 - M16
