[59188] Plug S 16 H 135 R

£ 46.56 £ 46.56 46.56 GBP / 50

£ 46.56 / 50 not combination_info.get('is_rental')

This combination does not exist.

Frame fixing with two-way expansion for fischer GS 12 standard scaffold anchoring for fixings in perforated brick and aerated concrete

Unit of Measure Name: 50
Internal Reference: 59188
Load Table:

NEED INFO / PRICING?
0161 672 3333

Terms & Conditions

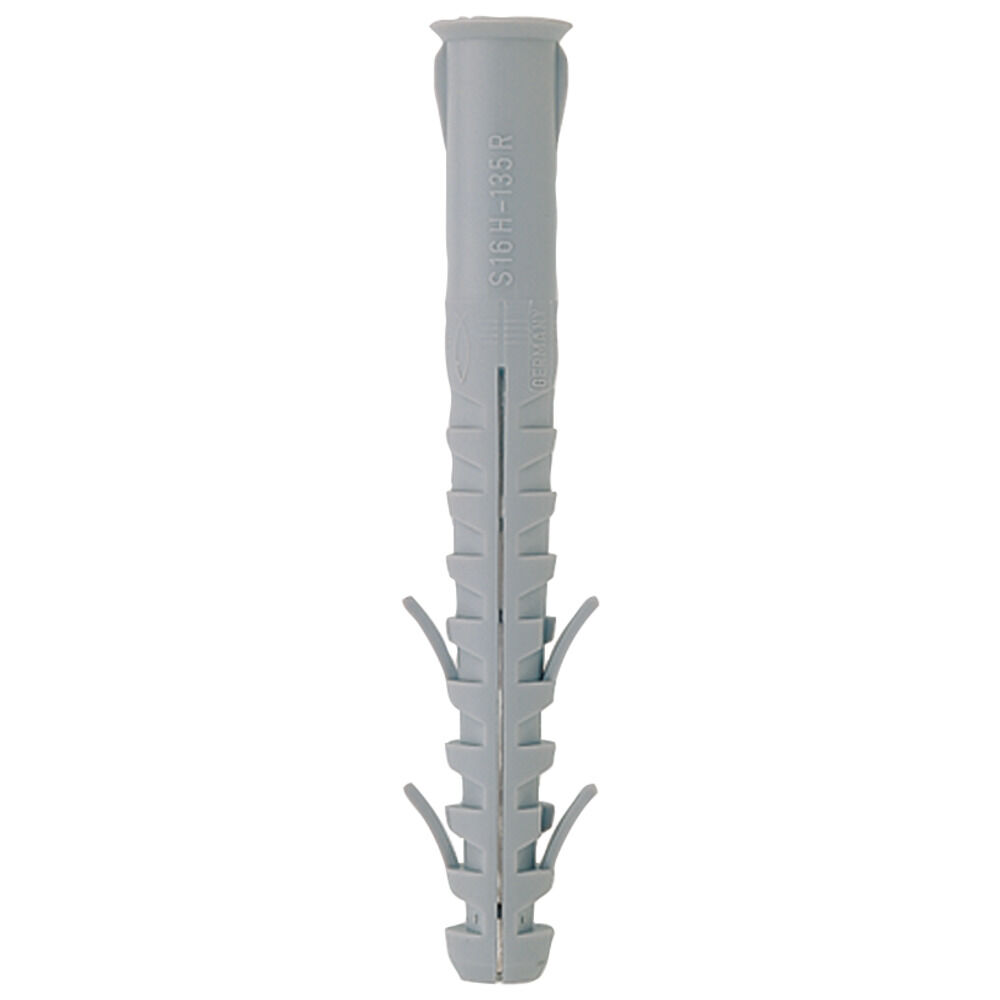

The fischer plug S 16 H R is an expansion plug made of high-quality nylon for holding the fischer eye bolt GS 12. The expanding wings prevent rotation and make assembly easier. When driving in the eye bolt, the expansion zone expands and anchor itself securely in the building material. For installations close to the edge, turn the plug so that the expansion force acts parallel to the edge.

Product Features

The ideal interaction of the scaffold eyebolt and plug allows for a high load-bearing capacity, thus providing increased safety.
The anchorage depth of 90 mm offers special advantages for anchoring's in perforated brick and aerated concrete.

Applications

When combined with GS 12:

Façade scaffolds
Ropes
Chains
Trellises
Lighting
Clothes lines
Hanging baskets

Building materials

GS 12 + S 16 H R suitable for:
Vertically perforated brick
Perforated sand-lime brick
Aerated concrete

Functionality

In order to achieve the maximum load-bearing capacity, nylon plugs should only be used once.
Not suitable for swings, hammocks etc.
