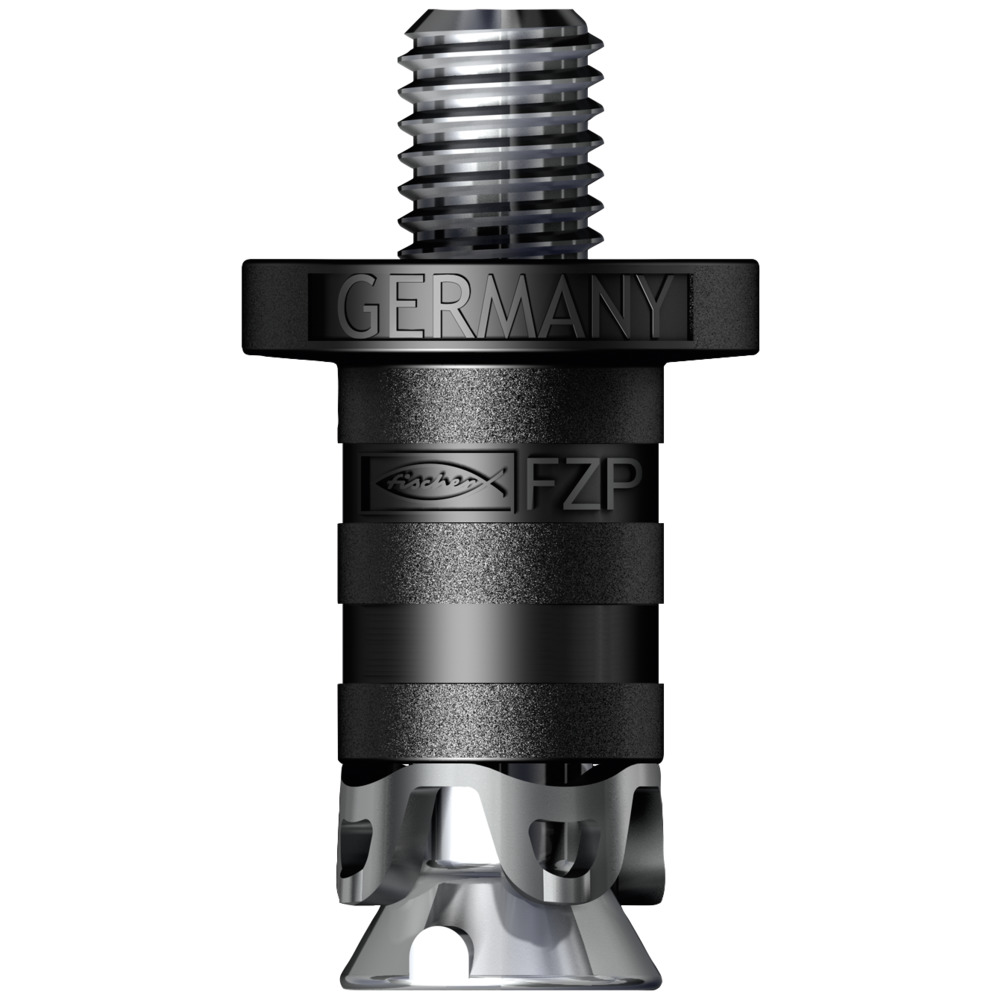

[511977] fischer Panel Anchor FZP II 11x21 M6/SO/9 Carbon

Description

The concealed stand-off installation solution using carbon fibre-reinforced plastic undercut anchors for heavy natural stone façade panels. This technology defines a constant distance between the front of the panel to the connection face on the FZP II anchor (RWT = remaining wall thickness) as a reference dimension for drilling. This technology can be used to compensate panel thicknesses to create a flat façade by using stand-off installation anchors.

Product Features

• The adapted shape of the undercut anchor ensures a positive-locking attachment free from expansion pressure in a conical undercut drill hole.

• The fixing of the undercut anchor is not visible on the exposed side, creating a visually attractive and consistent façade surface.

• Setting the anchor using undercut technology allows the user to always select the optimal structural position in the façade panel. This greatly reduces panel deflection.

• The anchor allows for higher pull-out loads, compared to commonly available systems.

• Using a constant remaining wall thickness as a reference value when drilling holes allows users to compensate panel thickness tolerances.
