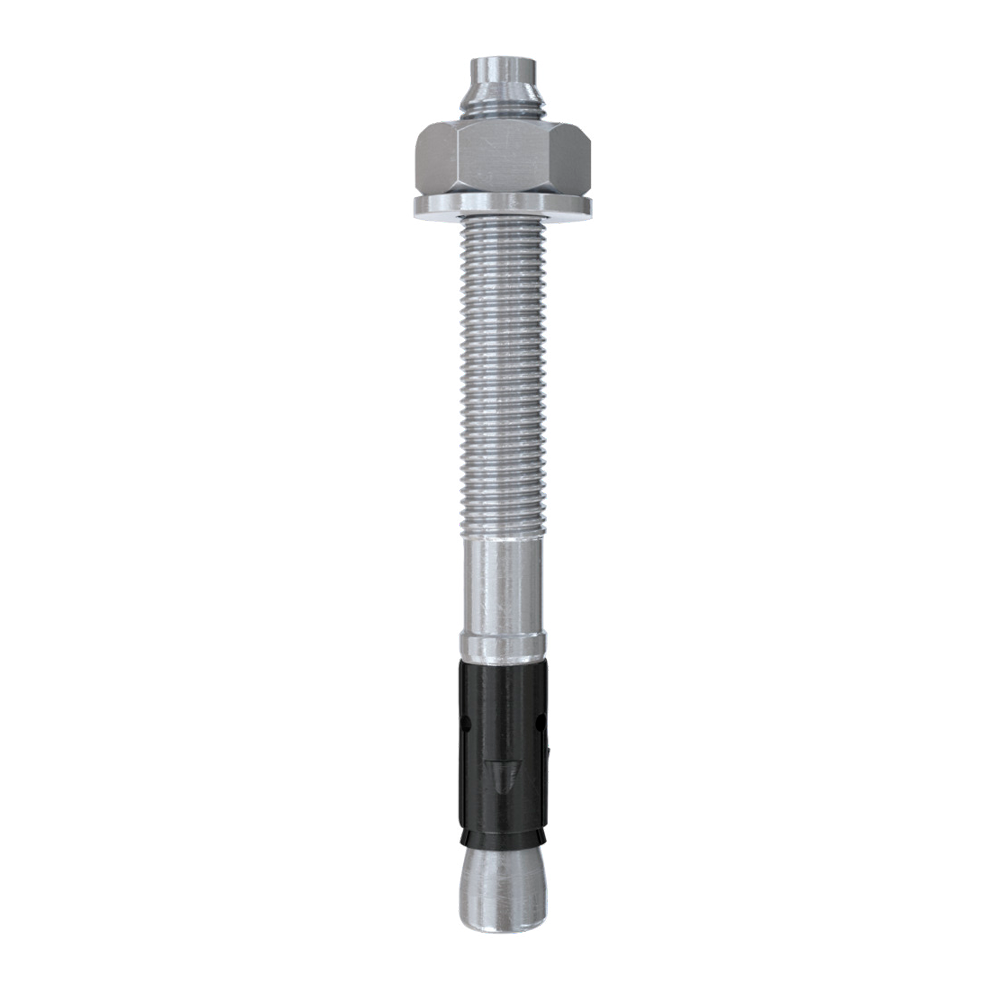

fischer FAZ II 16/160 M16 x 283 zinc through bolt [503254]

fischer FAZ II 16/160 M16 x 283 zinc through bolt [503254]

£ 93.61 £ 93.61 93.61 GBP / 10

£ 93.61 / 10 not combination_info.get('is_rental')

This combination does not exist.

ADD TO CART

The high spec through bolt designed for high loads in cracked and non-cracked concrete, with fire approval.

Unit of Measure Name: 10
Internal Reference: 503254

NEED INFO / PRICING?
0161 672 3333

Terms & Conditions

Description

The FAZ II has a unique expansion clip and design which allows for fixing heavy loads securely into both cracked and non-cracked concrete. The high load capacity allows for fewer fixings points to be used, which saves on installation time, and fixings cost as fewer fixings can be used. The zinc-plated version is used for fixing in indoor areas. By using the shorter FAZ version, (also available for M8 FAZ II), reduced drill hole depths and smaller diameters result in faster installation times. The FAZ II is approved for seismic, and also for installation with hollow drills.

Applications

Building Materials

Approved for:
Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
Concrete C12/15
Concrete C80/95 (classification available)
You can find detailed information on building materials in the registration document.

Certification

ETA-05/0069
DoP 0186
DoP No. 0009
DoP No. 0121
ESR-2948

Functionality

The FAZ II is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread.
When applying the torque, the cone bolt is pulled into the expansion sleeve and expand it against the drill hole wall.
The anchor is set in line with the approval once the preset installation torque is achieved.
In the case of series installation, we recommend using the FABS anchor bolt setting tool.

Mounting Strip 1 Picture

Document Name	Download
Declaration of Performance 1
Declaration of Performance 2
Declaration of Performance 3
ETA Approval
ICC Approval
Load Table
