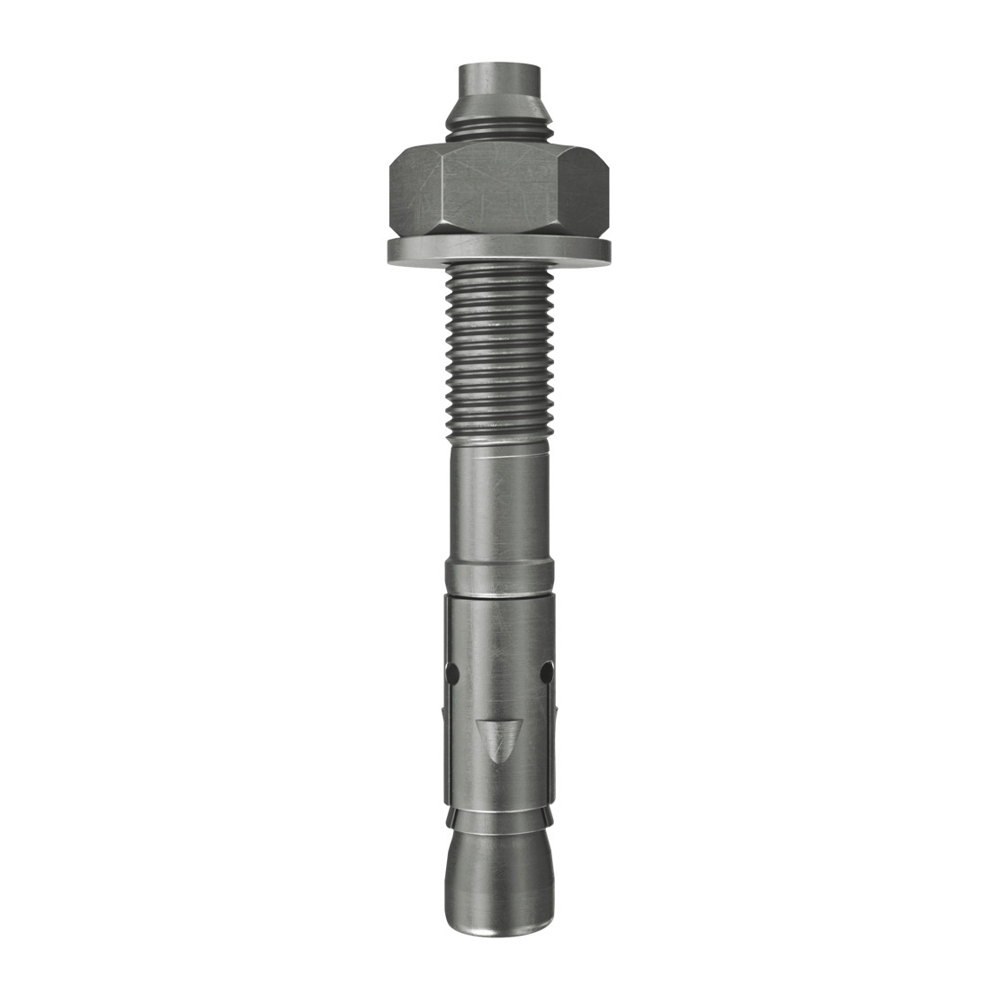

fischer FAZ II 10/10 A4 M10 x 95 A4 stainless through bolt [501403]

The FAZ II has a unique expansion clip and design which allows for fixing heavy loads securely into both cracked and non-cracked concrete. The high load capacity allows for fewer fixings points to be used, which saves on installation time, and fixings cost as fewer fixings can be used. The A4 stainless version is used for fixing in outdoor areas. By using the shorter FAZ version, (also available for M8 FAZ II), reduced drill hole depths and smaller diameters result in faster installation times. The FAZ II is approved for seismic, and also for installation with hollow drills.

Applications

• Steel constructions

• Guard rails

• Consoles

• Ladders

• Cable trays

• Machines

• Staircases

• Gates

• Façades

• Timber constructions

Building materials

• Approved for:

• Concrete C20/25 to C50/60, cracked and non-cracked

• Also suitable for:

• Concrete C12/15

• Concrete C80/95 (classification available)

• You can find detailed information on building materials in the registration document.

Permission

• ETA-05/0069

• DoP 0186

• DoP No. 0009

• DoP No. 0121

• ESR-2948

Functionality

• The FAZ II is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread.

• When applying the torque, the cone bolt is pulled into the expansion sleeve and expand it against the drill hole wall.

• The anchor is set in line with the approval once the preset installation torque is achieved.

• In the case of series installation, we recommend using the FABS anchor bolt setting tool.
