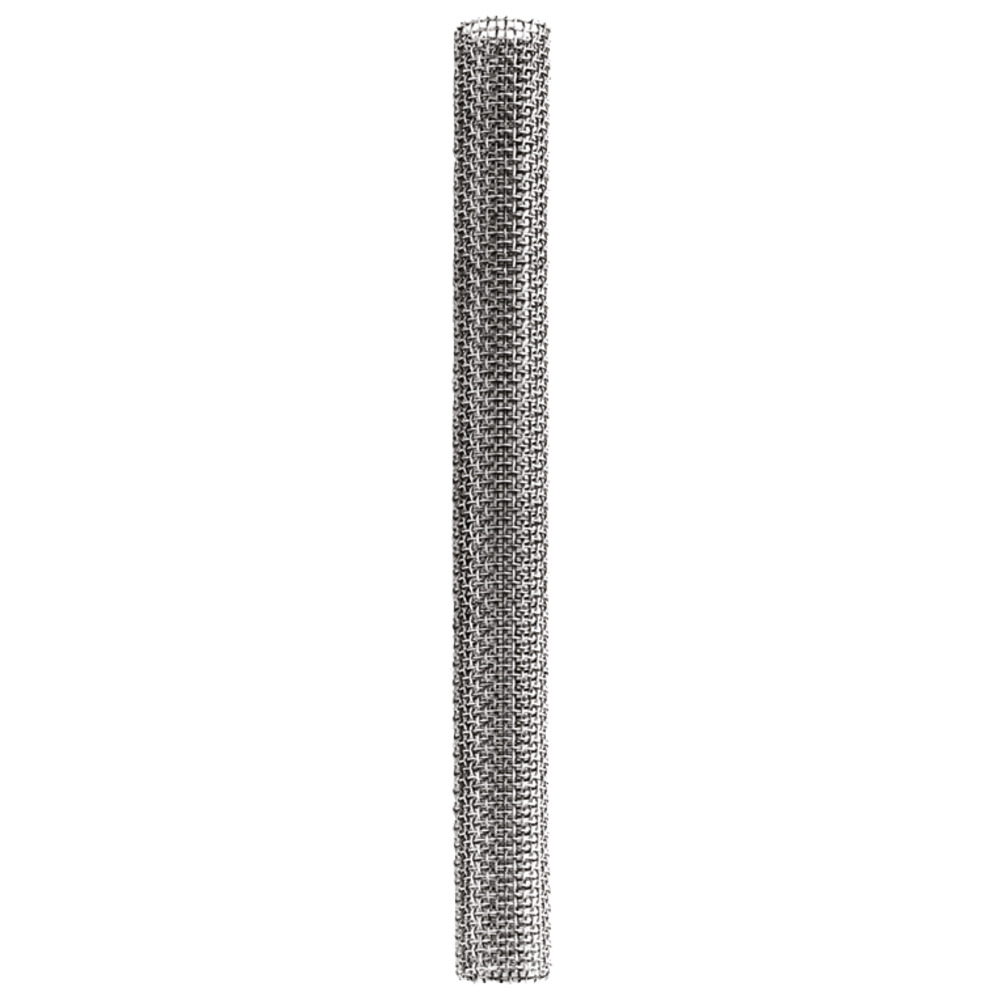

[45301] Injection anchor sleeve fischer 1 m length FIS H 22 x 1000 L
Unit of Measure Name:
6
Internal Reference:
45301
Description
The fischer metal injection anchor sleeve FIS H K is the cost-effective system component for the use of fischer injection mortars in perforated brick masonry within through-type installations. The anchor sleeve is cut to size, placed in the drill hole, and filled with injection mortar from the anchor sleeve base. When setting the anchor rod, the mortar is pressed through the lattice structure and then connects with the perforated brick by an interlock. This means that the load is directed into the building material.
Product Features
The metal anchor sleeve can be cut to the required length and thus allows for a range of usable lengths with just one produce, providing flexibility and cost-effectiveness.
The grating structure of the anchor sleeve allows for uniform distribution of mortar in the drill hole and thus for secure hold.
Anchoring in perforated brick masonry with injection mortars FIS V, FIS VL, FIS P Plus, FIS P, and FIS Green without approval
Suitable for:
Vertically perforated brick
Hollow blocks made from lightweight concrete
Hollow blocks made from concrete
Perforated sand-lime brick
Solid sand-lime brick
Solid brick
Hollow pumice slabs
Slabs made of hollow brick and other perforated brick
Solid pumice and other solid building materials
